Power Combined Graph

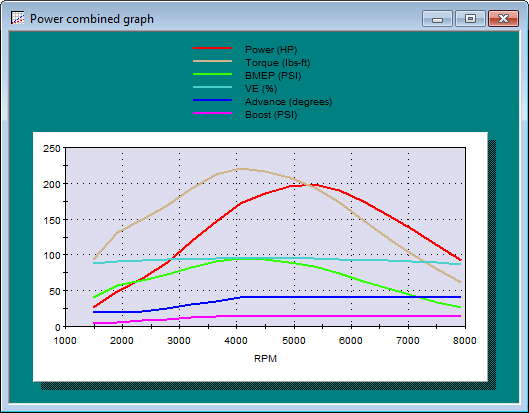

The engine power combined graph plots engine horsepower, torque, BMEP, volumetric efficiency, spark advance, and boost pressure over engine speed. Any desired combination of these values can be selected.
This graph uses your data inputs from the engine calculations.
Power graph
