Strut Travel Input

Allows entry of suspension measurements including control arm positions and track width.

While this data is intended for the Strut travel simulation, there are also several calculations made from the data you enter.

The Strut travel simulation supports asymmetrical suspension. You can enter different vales on the left and right sides. If your suspension is symmetrical, just enter the data for one side and click the Copy to other side button.

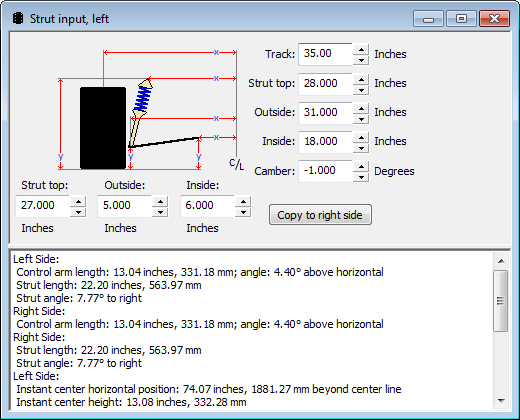

Strut Geometry Input
Left side strut data

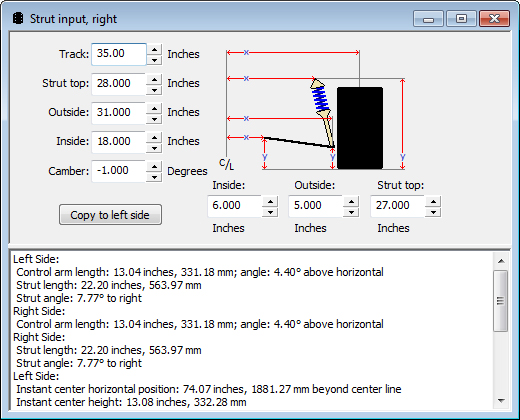

Right side strut data

Enter track width, strut position, control arm position, and camber angle. Calculate left side, control arm length, strut length, strut angle, right side position, control arm length, right side, strut length, strut angle, left side, instant center horizontal position, instant center height, right side, instant center horizontal position, instant center height, roll center height, left side, kingpin angle, kingpin offset (scrub radius), right side, kingpin angle, kingpin offset (scrub radius), and whether both sides are symmetrical.

Strut roll graph

Strut travel graph
